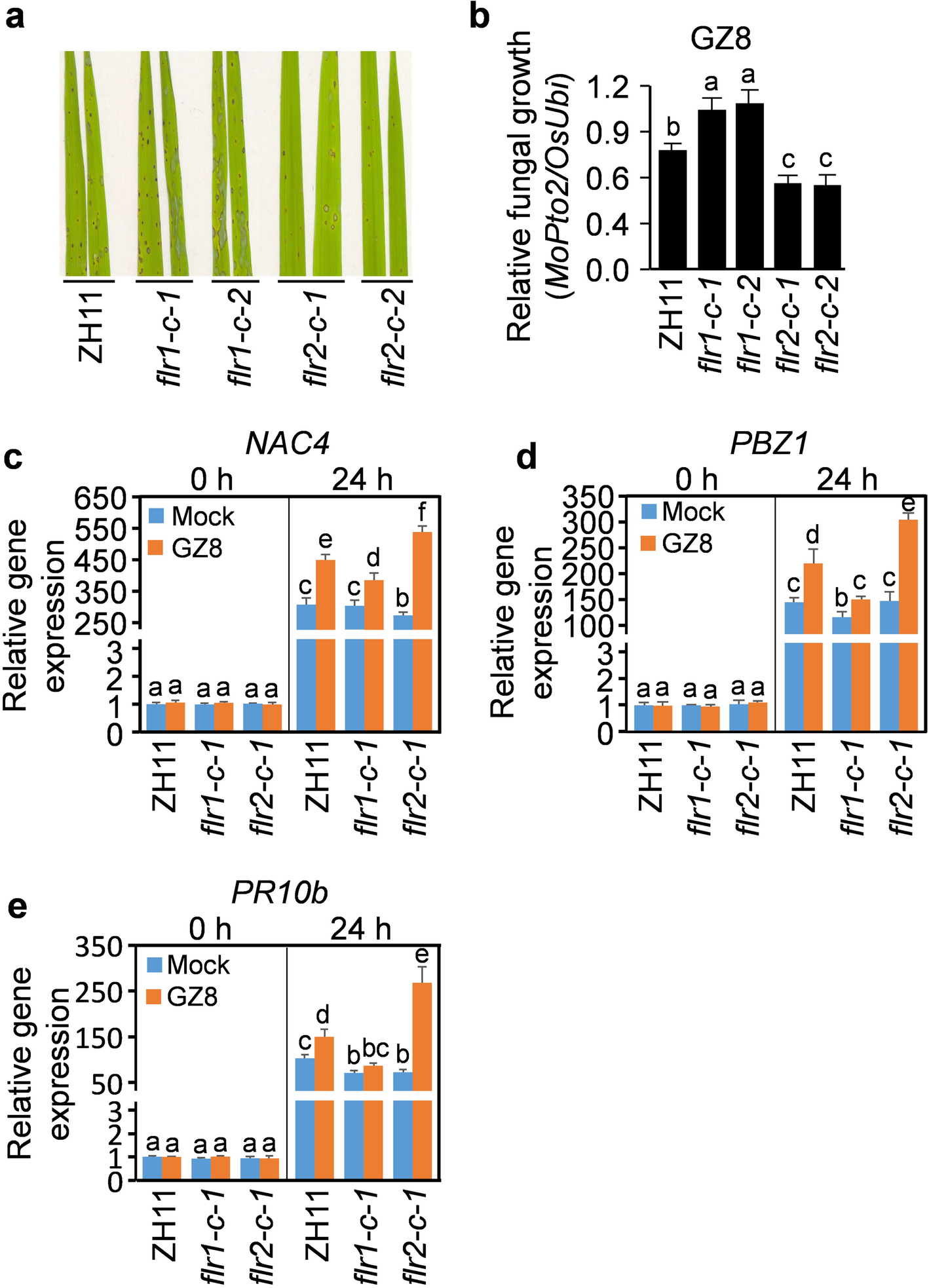

Fig. 4
From: Identification of FERONIA-like receptor genes involved in rice-Magnaporthe oryzae interaction
FLR1 and FLR2 oppositely act in rice blast resistance. a Spray-inoculated disease symptoms of rice blast disease on the indicated rice lines. b Relative fungal growth was quantified on the inoculated leaves of the indicated rice lines in a. Expression of NAC4 (c), PBZ1 (d) and PR10b (e) were measured in flr1-c-1, flr2-c-1 and ZH11 at 0 and 24 hpi and normalized by OsUbi. The error bars indicate the mean ±SE (n=3). The letters indicate the significant difference determined by one-way analysis of variance (ANOVA) followed by the Tukey test (P<0.05)
